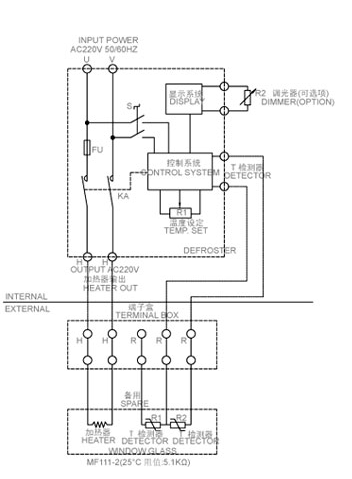

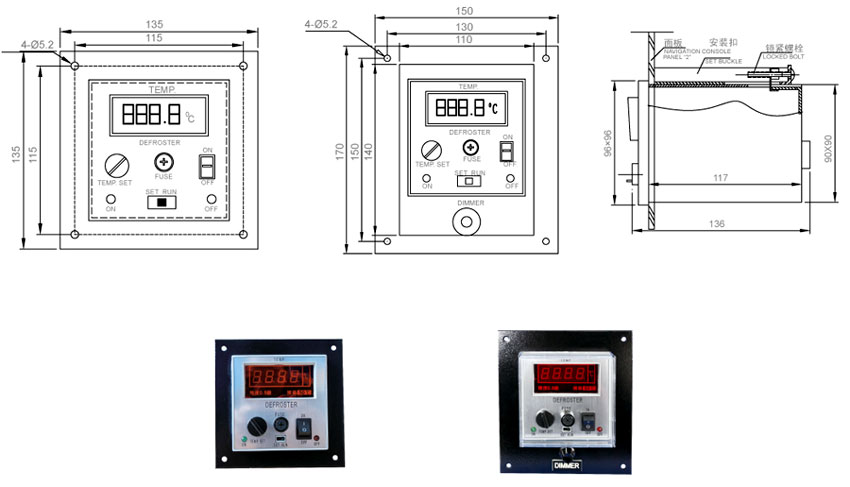

航海电器 |
|
 |
窗玻璃加热器 |
|
| |
Windows Heater
Controller |
|
| |
技术要求：
Technical Requirement:
1.控制面板用厚3mm的钢板制作.颜色为黑色.
The control panel uses thick 3mm the steel plate manufacture,
the color is black.
2.仪表盒外壳为塑料淡灰色.
The instrument case outer covering is the plastic light gray.
3.所有名牌均为英文,字体为黑底白字.
All nameplates are English, the typeface are the black bottom
white characters.
4.仪表尺寸：96mmX96mm,开孔尺寸:92mmX92mm. Meter size:96mmX96mm,Cut size:92mmX92mm.
5.安装面板开孔尺寸：100mmX115mm
Installment panel cut size: 100mmX115mm
安装面板开孔尺寸:110mmX140mm (带调光）
Installment panel cut size: 110mmX 140mm(Dimmer)
6.输入电源:AC110V AC220V 50/60HZ
Input power:AC 110V AC220V 50/60HZ
7.窗加热器输出容量10A,最大≤20A
Windows heater output content 10A,max≤20A
8.检测器型号:MF111-2(25℃ 阻值:5.1KQ).
Detector Model:mf111-2(25℃ Resistor No:5.1kQ)
|
 |
|
 |
|

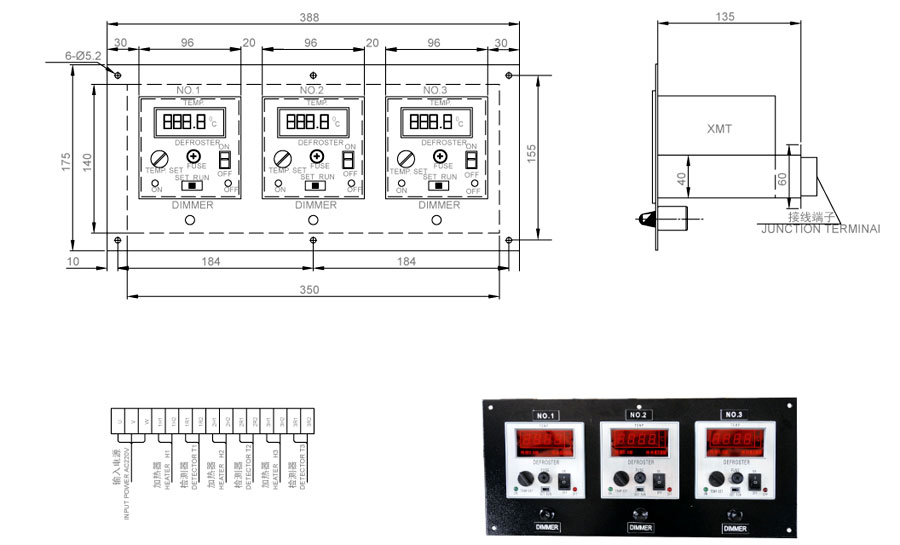

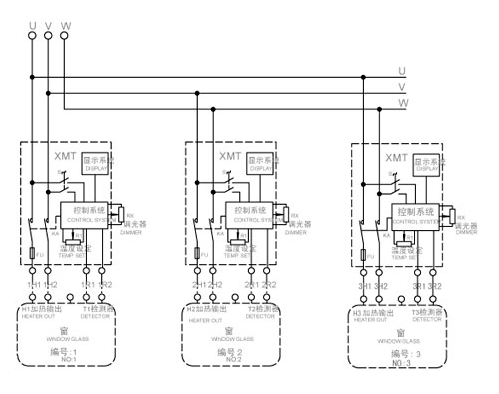

三窗玻璃加热器 |
|
| |
Three Windows
Heater Controller |
|
| |
技术要求：
Technical Requirement:
1.控制面板用厚3mm的钢板制作,颜色为黑色.
The control panel uses thick 3mm the steel plate manufacture,
the color is black.
2.仪表盒外壳为塑料淡灰色.
The instrument case outer covering is the plastic light gray.
3.所有名牌均为英文,字体为黑底白字.
All nameplates are English, the typeface are the black bottom
white characters.
4.仪表尺寸:96mmX96mm,开孔尺寸:92mmX92mm.
Meter size:96mmX96mm,Cut size:92mmX92mm.
5.安装面板开孔尺寸:350mmX140mm.
Installment panel cut size::350mmX140mm.
6.输入电源:AC110V AC220V 50/60HZ
Input power:AC110V AC220V 50/60HZ
7.窗加热器输出容量10A,最大≤20A
Windows heater output content 10A,max≤20A
8.检测器型号:MF111-2(25℃ 阻值:5. 1KQ).
Detector Model:mf111-2(25℃ Resistor No:5.1kQ)
|
 |
|
 |
|
